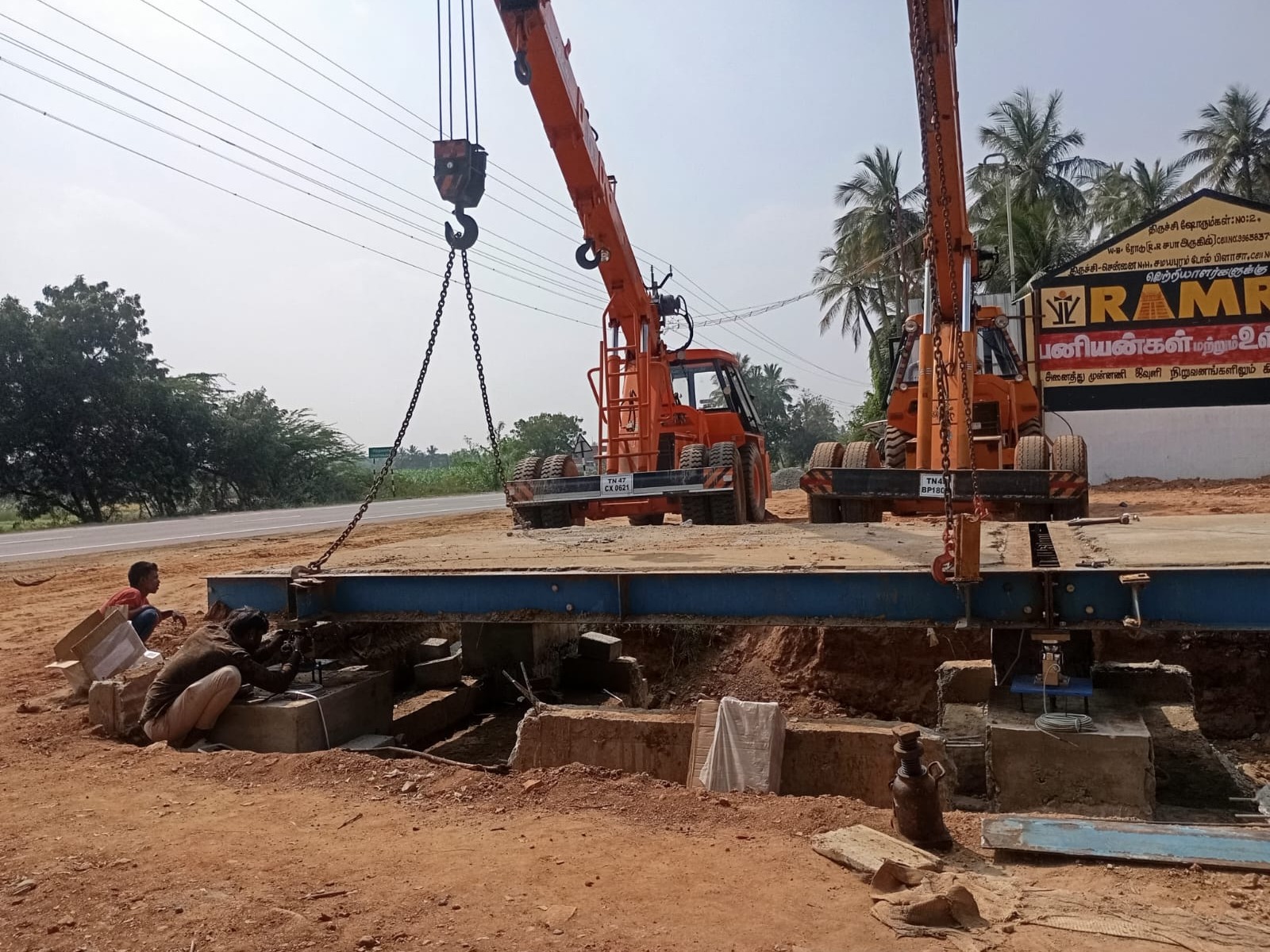

Moving a concrete weighbridge is a significant logistical undertaking. Unlike steel-deck weighbridges, which are essentially “plug and play, “ concrete decks are heavy, rigid, and prone to cracking if handled incorrectly.Here is a breakdown of how to manage the shift and reinstallation effectively.1. Pre-Shift AssessmentBefore you bring in the cranes, you need to evaluate the feasibility of the move.Structural Integrity: Inspect the concrete for deep cracks or exposed rebar. If the deck is crumbling, it may be cheaper to pour a new one at the destination than to transport the old one.Weight Calculation: A standard 18-meter concrete deck can weigh upwards of 25 to 30 tons. Ensure your crane and trailer are rated for this capacity.Component Inventory: Document the load cells, junction boxes, and cables. These are the “brains“ of the operation and must be handled with extreme care.2. The Dismantling ProcessPower Down: Disconnect the indicator and isolate the power supply.Cable Management: Label every cable before disconnecting it from the junction box. This saves hours of troubleshooting during reinstallation.The Lift: Use specialized lifting lugs. Concrete decks should be lifted using a 4-point chain sling system to ensure the weight is distributed evenly, preventing the slab from snapping under its own weight.3. Preparation of the New SiteThe most common mistake is moving the deck before the new pit or foundation is ready.RequirementSpecificationFoundationMust be level and cured (usually 14–21 days) to handle the PSI of the loaded bridge.DrainageEnsure the new site has proper drainage to prevent water from sitting in the pit and damaging load cells.ApproachesYou need at least 3 to 5 meters of level concrete approach on either side for accurate weighing.4. Reinstallation & CalibrationOnce the deck is lowered onto the new mounting plates:Load Cell Placement: Install the load cells and ensure they are perfectly vertical. Use “dummy“ load cells (steel blocks) during the actual dropping of the deck to prevent crushing the real sensors.Earthing/Grounding: This is critical. Reinstall the lightning protection and copper earthing straps to protect the electronics.The “Corner Test“: Once powered up, check each corner of the bridge with a known weight to ensure they are reading identically.Stamping/Certification: Since the weighbridge has been moved, it is legally considered a “new“ installation. You will need a certified scale technician to calibrate it and, in most regions, a Weights and Measures official to “stamp“ it for trade use.Pro Tip: While the deck is in the air, take the opportunity to clean and paint the steel frame/structure that holds the concrete. It’s the only time you’ll have full access to the underside.Would you like me to he
